Lima Locomotive Works, Inc.

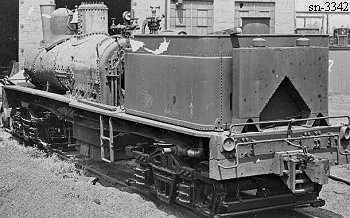

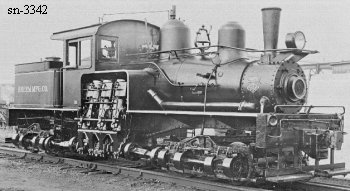

Photo Credit:
Both: George R. Kadelak collection (BP 11-1930)
Shop Number 3342 - Built for: B. S. Duncan
{2,756th Lima Built Shay}
Built:
9-27-1929
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]
E.W.T. - 39.5"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,316 Lbs.
 Factor of
Adhesion:
5.92
Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
70,000
Owners:
B. S. Duncan #4, Shaw, WV
(9-1930) Lima Locomotive Works, Inc., Lima, OH, repossessed
(11-1930) [Std.] Rheem Mfg. Co., Shipbuilding Division, Harbor Junction Wharf, Providence, RI
(5-16-1946) The Smith Granite Co., Westerly, RI
Disposition: Scrapped
Additional Notes:
