Lima Locomotive Works, Inc.

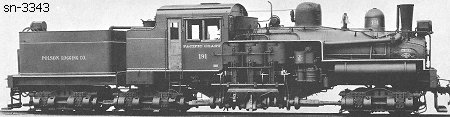

Photo Credit:
Dan Ranger Jr. collection (BP 10-1929)
Shop Number 3343 - Built for: Lima Locomotive Works, Inc.
{2,757th Lima Built Shay}
Built:
10-3-1929
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
38,183 Lbs.
 Factor of
Adhesion:
4.92
 Maximum
Safe Speed:
17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
160,600
Owners:
Lima Locomotive Works, Inc., Lima, OH, built for stock
Hofius Steel & Equip. Co. (D), Seattle, WA
Polson Log.Co. #191, Railroad Camp, WA
(1948) Rayonier Inc. #191, Railroad Camp, WA
Disposition: (1958) Scrapped at Railroad Camp
