Lima Locomotive Works, Inc.
Photo Credit:

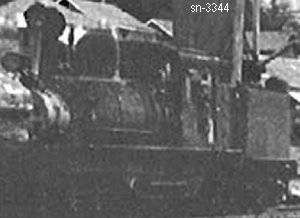

Left: MacMillan Bloedel collection (8-31-1955)

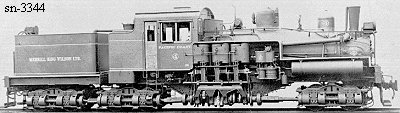

Right: George R. Kadelak collection (BP 2-1930)
Shop Number 3344 - Built for: Merrill Ring & Wilson Ltd.
{2,758th Lima Built Shay}
Built:
2-17-1930
Class:
3-PC-13
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 13 x 15
Gear Ratio:
2.41
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 50.125"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
38,183 Lbs.
Factor of
Adhesion:

4.92
Maximum
Safe Speed:

17.8
Fuel Type:
Oil
Fuel Capacity:
1,200 Gals.
Water Capacity:
3,000 Gallons
Empty Weight:
As built
160,600
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Merrill Ring Wilson, Ltd. #4, Rock Bay, BC
(11-25-1941) Mayo Bros. Tbr. Co., Ltd. (D), Paldi, BC, CAN
(2-12-1943) Salmon River Log. Co. #5, Kelsey Bay, BC
(1951) Kelley Log. Co., Ltd. #1, Aero Camp (Morsby Island), BC, CAN
(1955) Canadian Forest Products Ltd. #1 (2nd), Englewood, BC, for parts
Disposition: (1955) boiler went to sn-3350, Beaver Cove, BC, CAN
(1955) Scrapped on Vancover Island
Additional Notes:
