Lima Machine Works

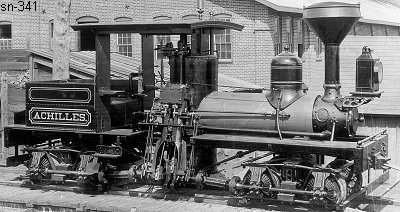

Photo Credit:
Marc Reusser collection (BP 4-1891)
Shop Number 341 - Built for: H. Kalbach & Son
{304th Lima Built Shay}
Built:
4-21-1891
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.500
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,602 Lbs.
Factor of
Adhesion:

3.78
Maximum
Safe Speed:

10.5
Fuel Type:
Coal
Fuel Capacity:
0.33 Ton
Water Capacity:
240 Gallons
Empty Weight:
As built
15,000
Owners:
H. Kalbach & Son #1 "ACHILLES", Lebanon, PA
Gibson Lbr. Co., Masontown, WV
(1912) Lima Locomotive Corp. (B), Lima, OH, returned *
J. B. Jackman & Sons (D), Lima, OH, for scrap *
Disposition: Scrapped
Additional Notes: * Owned by Dealer
