Lima Machine Works

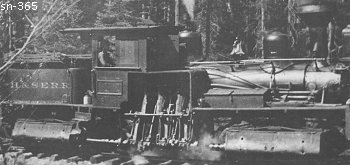

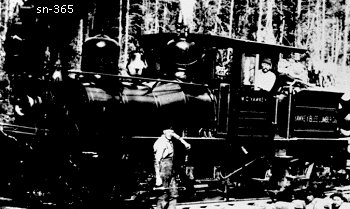

Photo Credit:
Both: Gilkey collection.at Merrill Historical Society

Shop Number 365 - Built for: Yawkey & Lea Lbr. Co.
{328th Lima Built Shay}
Built:
8-3-1891
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
9,762 Lbs.
Factor of
Adhesion:

4.96
Maximum
Safe Speed:

14.2
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
780 Gallons
Empty Weight:
As built
39,000
Owners:
Yawkey & Lea Lbr. Co., Hazelhurst & South Eastern RR #13 "W.C. YAWKEY", Hazelhurst, WI
(1893) Yawkey Lbr. Co., Hazelhurst & South Eastern RR #13, Hazelhurst, WI
(1906) Yawkey-Bissel Lbr. Co., Hazelhurst & South Eastern RR #13, Hazelhurst, WI
(1912) Farrell Loco. Works (D), Brinkley, AR
Penrod, Jurden & McCowen, Mickey's, AR
Disposition: Scrapped
Additional Notes:
