Lima Machine Works

Photo Credit:
Tom Timony collection

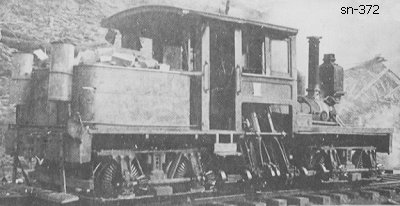

Shop Number 372 - Built for: H. S. Southard & Co. (cancelled)
{335th Lima Built Shay}
Built:
9-5-1891
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
7,813 Lbs.
Factor of
Adhesion:

3.46
Maximum
Safe Speed:

10.1
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
486 Gallons
Empty Weight:
As built
23,000
Owners:
Oregon-Idaho Lbr. Co. #1, Glendale, OR
Wells-Laber Lbr. Co. #1, Rainier, OR
(1917) Jacobsen-Reid Lbr. Co. #1, Rainier, OR
(1923) Zimmerman, Wells & Brown Co.(D), Portland, OR *
(11-8-1928) Douglas Lbr. Co., Glendale, OR
Disposition: Scrapped
Additional Notes: * Owned by Dealer
