Lima Machine Works

Photo Credit:
McKean County Historical Society

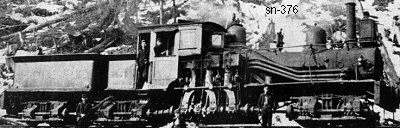

Shop Number 376 - Built for: F. H. & C.W. Goodyear
{339th Lima Built Shay}
Built:
1-15-1892
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14 x 12
Gear Ratio:
2.056
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,587 Lbs.
Factor of
Adhesion:

4.83
Maximum
Safe Speed:

19.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,790 Gallons
Empty Weight:
As built
113,500
Owners:
F. H. & C.W. Goodyear, Sinnemahoning Valley RR #5 (2nd), Austin, PA
Goodyear Lbr. Co. #5, Austin, PA
(1910) Potato Creek RR Co., Potato Creek RR #5, Norwich (Keating Summit), PA
Disposition: (10-1919) Scrapped
Additional Notes: F. H. & C.W. Goodyear was Frank Henry and his brother Charles Waterhouse Goodyear
??Owner: ?-Cleveland Oconee Lbr. Co., Atlanta GA [comes as an owner listed on a Lima record but may be an error on Lima's part]
