Lima Locomotive & Machine Co.

Photo Credit:
Single Shot Gallery

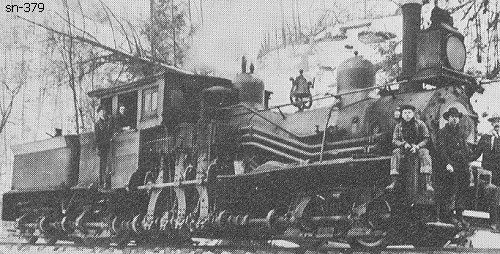

Shop Number 379 - Built for: F. H. & C. W. Goodyear
{342nd Lima Built Shay}
Built:
4-30-1892
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14 x 12
Gear Ratio:
2.056
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,587 Lbs.
Factor of
Adhesion:

4.83
Maximum
Safe Speed:

19.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,790 Gallons
Empty Weight:
As built
113,500
Owners:
F. H. & C. W. Goodyear, Sinnemahoning Valley RR #11, Austin, PA
Goodyear Lbr. Co. #11, Austin, PA
(1910) Potato Creek RR Co., Potato Creek RR #11, Norwich (Keating Summit), PA
Disposition: Scrapped 10-10-1919
Additional Notes: F.H. & C.W. Goodyear was Frank Henry and his brother, Charles Waterhouse Goodyear
