Lima Locomotive & Machine Co.

Photo Credit:
University of Michigan Engineering & Transportation Library (BP 3-1898)

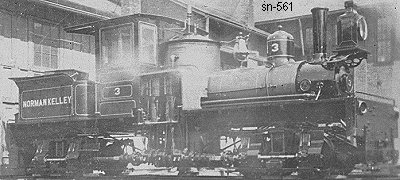

Shop Number 561 - Built for: Kelley Island Lime & Transport Co.
{508th Lima Built Shay}
Built:
3-27-1898
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
6,101 Lbs.
Factor of
Adhesion:

6.00
Maximum
Safe Speed:

14.2
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
840 Gallons
Empty Weight:
As built
30,000
Owners:
Kelley Island Lime & Transport Co. #3 "NORMAN KELLEY", Kelley's Island, OH
(7-6-1928) Stored out of service at Marblehead
Disposition: (1942) Scrapped for war effort
Additional Notes:
