Lima Locomotive & Machine Co.

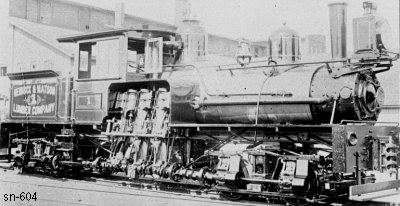

Photo Credit:
University of Michigan Engineering & Transportation Library (BP 6-1900)
Shop Number 604 - Built for: Blackwell & Webb
{549th Lima Built Shay}
Built:
6-12-1900
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,509 Lbs.
Factor of
Adhesion:

5.41
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,045 Gallons
Empty Weight:
As built
54,800
Owners:
Blackwell & Webb #1, Westboro, WI; For:
Hendick & Matson Lbr. Co. #1, Westboro, WI
Westboro Lbr. Co. Westboro & Northwestern RY #1, Westboro, WI
(1-20-1921) Yawkey-Bissell Lbr. Co. #4, White Lake, WI
Disposition: (c1938) Scrapped
Additional Notes:
