Lima Locomotive & Machine Co.

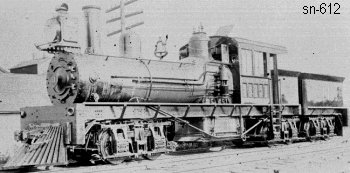

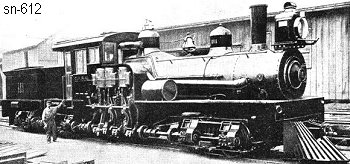

Photo Credit:
Left: George R. Kadelak collection (BP 8-1900) - Right: Jim Hurt collection
Shop Number 612 - Built for: Canadian Pacific RY
{557th Lima Built Shay}
Built:
8-9-1900
Class:
C
91-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 15 x 17
Gear Ratio:
2.05
Wheel Dia.:
40"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 56.5"
Boiler Pressure:
In Lbs. (PSI)
190
Tractive Effort:
41,902 Lbs.
Factor of
Adhesion:

4.73
Maximum
Safe Speed:

23.2
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
3,475 Gallons
Empty Weight:
As built
160,020
Owners:
Victoria Rolling Stock Co. (D), Montreal, CAN For:
Canadian Pacific RY, #111(2nd), Rossland, BC, CAN
Canadian Pacific RY, #1901(in 6-1902), Phoenix, BC, CAN
Canadian Pacific RY, #5901(in 4-1912), Phoenix, BC, CAN
(2-1914) Retired from service
Disposition: (4-30-1920) Scrapped
Additional Notes: (8-23-1904) Runaway accident, repaired and put back in service
