Lima Locomotive & Machine Co.

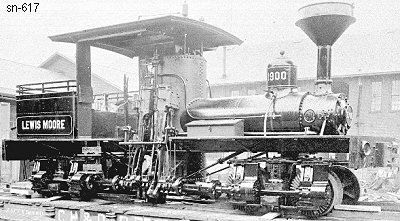

Photo Credit:
George R. Kadelak collection (BP 9-1901)
Shop Number 617 - Built for: Allen Lbr. Co.
{562nd Lima Built Shay}
Built:
9-21-1901
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
7,813 Lbs.
Factor of
Adhesion:

3.81
Maximum
Safe Speed:

10.1
Fuel Type:
Coal
Fuel Capacity:
0.75 Cord
Water Capacity:
500 Gallons
Empty Weight:
As built
25,200
Owners:
Allen Lbr. Co. #1900 "LEWIS MOORE", Sterrett, AL
Blount Lbr. Co., Dallas, AL
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(1-30-1914) W.M. Carter Lbr. Co., Laurel, MS
(5-1917) Campen & Grady, Sebastopol, MS
H. H. Summer, Kestler, GA
Disposition: Scrapped
Additional Notes:
