Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 3-1901)

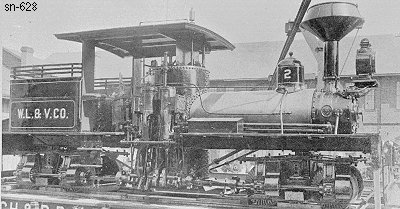

Shop Number 628 - Built for: Warnell Lbr. & Veneer Co.
{573rd Lima Built Shay}
Built:
3-16-1901
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
10,205 Lbs.
 Factor of
Adhesion:
3.40
Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
630 Gallons
Empty Weight:
As built
29,100
Owners:
Warnell Lbr. & Veneer Co. #2, Plant City, FL
Lake Alfred Lbr. Co., Wilma, FL
(12-13-1937) For sale through Georgia Car & Loco. Co. (D)
Disposition: Scrapped
Additional Notes:
