Lima Locomotive & Machine Co.

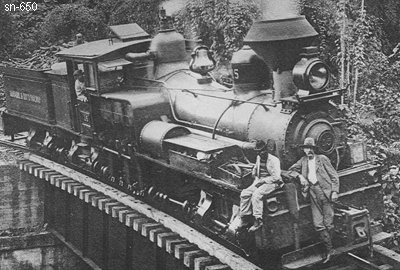

Photo Credit:
by John Horgan Jr. from Kurt Hibbert collection
Shop Number 650 - Built for: Ecuadorian Association Ltd.
{595th Lima Built Shay}
Built:
5-30-1901
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
42"
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
4.98
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 5 Tons
Water Capacity:
3,033 Gallons
Empty Weight:
As built
90,000
Owners:
The Ecuadorian Association Ltd., Guayaquil, Ecuador, For:
Guayaquil & Quito RY #15, Guayaquil, Ecuador
Disposition: Scrapped
Additional Notes:
