Lima Locomotive & Machine Co.

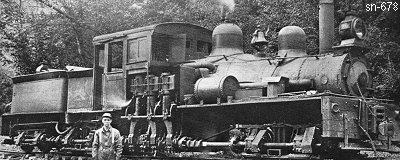

Photo Credit:
Thomas T. Taber collection
Shop Number 678 - Built for: The James Strong Lbr. Co.
{623rd Lima Built Shay}
Built:
12-4-1901
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,093 Lbs.
Factor of
Adhesion:

5.55
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,085 Gallons
Empty Weight:
As built
127,900
Owners:
The James Strong Lbr. Co. #1 "JAMES FRY STRONG", Bristol, TN
(1910 or later) Goodyear Lbr. Co., Potato Creek RR #1 (2nd), Keating Summit, PA
(6-12-1920) Fourche River Lbr. Co., Fourche River Valley & Indian Territory RY #7, Bigelow, AR
(4-14-1922) For sale in Bigelow, AR
(8-4-1924) Green River Lbr. Co. (A. H. Brix) #7, McIntosh, WA
Disposition: Scrapped
Additional Notes:
