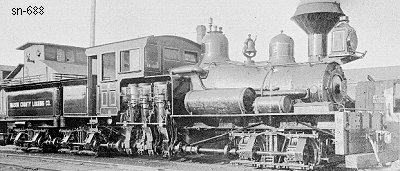

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 5-1902)
Shop Number 688 - Built for: Mason County Log. Co.
{632nd Lima Built Shay}
Built:
5-2-1902
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 52"
Boiler Pressure:
In Lbs. (PSI)
190
 Tractive Effort:
30,710 Lbs.
 Factor of
Adhesion:
5.25
 Maximum
Safe Speed:
20.9
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 5 Tons
Water Capacity:
3,007 Gallons
Empty Weight:
As built
127,000
Owners:
Mason County Log. Co. Black Hills & Northwestern RR #2, Bordeaux, WA
(7-25-1926) Wrecked
(2-10-1927) Hama Hama Log. Co. #5 (2nd), Eldon, WA
(1927) Combined with parts from sn-716 to make one working Shay
Disposition: Scrapped
Additional Notes: (1937) Still at Hama Hama Log. Co.
Some records show two additional locations that have not been verified:
(1-21-1921) Mason County Log. Co. #2, Gibson Creek, WA
(10-20-1924) Mason County Log. Co. (Bordeaux Lbr. Co.) #2, Bordeaux, WA
