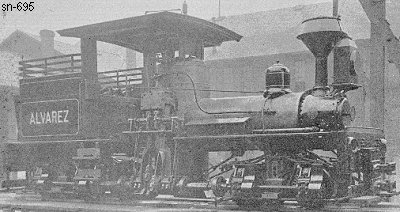

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (BP 10-1901)
Shop Number 695 - Built for: Alvarez Land & Lbr. Co.
{639th Lima Built Shay}
Built:
10-2-1901
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
22"
Gauge:
30"
Boiler:
[Style - Dia.]
Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
145
 Tractive Effort:
4,449 Lbs.
 Factor of
Adhesion:
4.64
 Maximum
Safe Speed:
10.5
Fuel Type:
Coal
Fuel Capacity:
0.45 Tons
Water Capacity:
500 Gallons
Empty Weight:
As built
17,000
Owners:
Alvarez Land & Lbr. Co., Villa de La Paz, San Luis Potosi, Mexico
(2-25-1926) For sale
Disposition: Scrapped
Additional Notes:
