Lima Locomotive & Machine Co.

Photo Credit:
Bert H. Ward collection

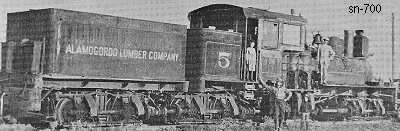

Shop Number 700 - Built for: Alamogordo Lbr. Co.
{644th Lima Built Shay}
Built:
6-9-1902
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14 x 14
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
31,642 Lbs.
Factor of
Adhesion:

5.39
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
137,200
Owners:
Alamogordo Lbr. Co. #5, Alamogordo, NM
(1916) Sacramento Mountain Lbr. Co., #5, Alamogordo, NM
(10-15-1920) Southwest Lbr. Co. #5, Alamogordo, NM
(3-16-1941) Southwest Lbr. Co. #5, Marcia, NM
Disposition: (1946) Scrapped
Additional Notes: Converted to oil burner
