Lima Locomotive & Machine Co.

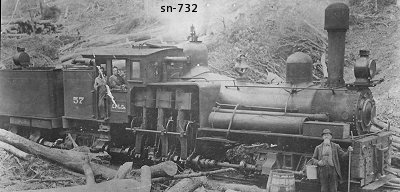

Photo Credit:
Walter Casler collection
Shop Number 732 - Built for: The James Strong Lbr. Co.
{674th Lima Built Shay}
Built:
9-2-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.211
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,293 Lbs.
Factor of
Adhesion:

4.61
Maximum
Safe Speed:

17.8
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
104,950
Owners:
The James Strong Lbr. Co. #2 "REXFORD & COLLINS", Bristol, TN
(2-9-1921) Central Pennsylvania Lbr. Co. #57, Leetonia, PA
(5-19-1922) Central Pennsylvania Lbr. Co. #57, Ricketts, PA
(1-18-1923) Central Pennsylvania Lbr. Co. #57, Laquin, PA
(1926) C. C. Slaght Lbr. Co., Morris, PA
(1928) Rib Lake Lbr. Co. #57, Rib Lake, WI
Disposition: Scrapped
Additional Notes:
