Lima Locomotive & Machine Co.

Photo Credit:
by unknown

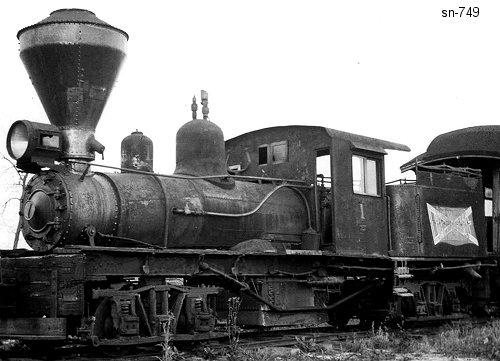

Shop Number 749 - Built for: Jackson Lbr. Co.
{691st Lima Built Shay}
Built:
1-17-1903
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,826 Lbs.
Factor of
Adhesion:

4.55
Maximum
Safe Speed:

16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,586 Gallons
Empty Weight:
As built
53,200
Owners:
Jackson Lbr. Co., Dixie Route RR #1, Lockhart, AL
Disposition: Scrapped
Additional Notes:
