Lima Locomotive & Machine Co.

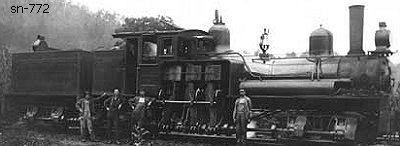

Photo Credit:
Little River Railroad Museum collection
Shop Number 772 - Built for: Little River Lbr. Co.
{714th Lima Built Shay}
Built:
5-29-1903
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
24,166 Lbs.
Factor of
Adhesion:

5.54
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
103,550
Owners:
Little River Lbr. Co., Little River RR #3 "MABEL", Townsend, TN
(11-1922) Conasauga River Lbr. Co. #3, Conasauga, TN
Disposition: (2-1941) Scrapped
Additional Notes:
