Lima Locomotive & Machine Co.

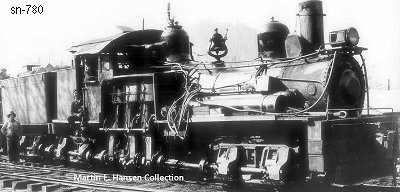

Photo Credit:
Martin E. Hansen collection
Shop Number 780 - Built for: Lyman Tbr. Co.
{722nd Lima Built Shay}
Built:
7-11-1903
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
24,166 Lbs.
Factor of
Adhesion:

5.92
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
112,850
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Lyman Tbr. Co. #2, Hamilton, WA
Zimmerman, Wells & Brown (D), Portland, OR
(2-1922) L. Houghton Log. Co. #2, McMurray, WA
Union Machinery & Supply Co. (D), Seattle, WA
(2-14-1924) Yeomans Lbr. Co., Pe Ell & Columbia River RY #2, Pe Ell, WA
(by 3-7-1927) Pe Ell Lbr. Co. #6, Pe Ell, WA
Disposition: Scrapped
Additional Notes:
