Lima Locomotive & Machine Co.

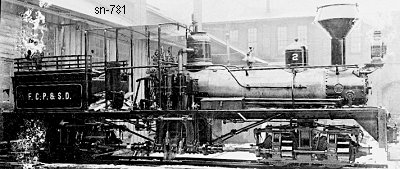

Photo Credit:
Allen County Historical Society Museum collection (BP 1-1903)
Shop Number 781 - Built for: F.C.P. & S.D.
{723rd Lima Built Shay}
Built:
1-23-1903
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
30"
Boiler:
[Style - Dia.]

W.T. - 30"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
7,713 Lbs.
Factor of
Adhesion:

6.11
Maximum
Safe Speed:

14.2
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
780 Gallons
Empty Weight:
As built
39,300
Owners:
J. A. Wright #2, Eda, Mexico For:
F. C. Potosi y Santo Domingo #2, Peso, SLP, Mexico
Sierra de Alvarez #2, Peso, SLP, Mexico
F. C. Potosi y Rio Verde #2, Peso, SLP, Mexico
Disposition: Scrapped
Additional Notes: F. C. Potosi y Rio Verde was owned by Sr. Octaviano B. Cabrera
