Lima Locomotive & Machine Co.

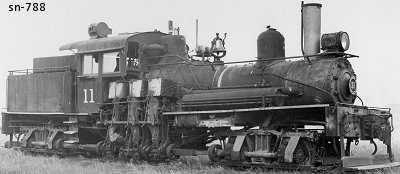

Photo Credit:
by John Henderson (6-1-1947)
Shop Number 788 - Built for: Sierra RY
{730th Lima Built Shay}
Built:
7-3-1903
Class:
B
55-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
21,481 Lbs.
Factor of
Adhesion:

4.47
Maximum
Safe Speed:

19.4
Fuel Type:
Oil
Fuel Capacity:
1,000 Gal.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
75,000
Owners:
Sierra RY Co. of California, Sierra RY #11, Jamestown, CA
Standard Lbr. Co. Sugar Pine RY #11, Standard, CA
Verdi Lbr. Co. #11, Verdi, NV
(5-27-1926) For sale
(7-1-1938) Clover Valley Lbr. Co. #11, Loyalton, CA
Disposition: (8-1952) Scrapped
Additional Notes:
