Lima Locomotive & Machine Co.

Photo Credit:
by Nelson Caulkins from Robert Eagle collection
Shop Number 792 - Built for: Elk Tanning Co.
{734th Lima Built Shay}
Built:
7-25-1903
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
29,093 Lbs.
Factor of
Adhesion:

5.64
Maximum
Safe Speed:

20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,032 Gallons
Empty Weight:
As built
131,850
Owners:
Elk Tanning Co., Spring Creek RY #109, Hallton, PA
Hall & Gardner Co., Hallton, PA
(1904) Susquehanna and New York RR (United States Leather Co.) #109 (2nd), Towanda, PA
(3-1-1919) Central Pennsylvania Lbr. Co. #109 later #65, Grays Run, PA
(2-18-1920) Central Pennsylvania Lbr. Co. #65, Kinzua, PA
(10-6-1920) Central Pennsylvania Lbr. Co. #65, Ricketts, PA
(10-1-1921) Central Pennsylvania Lbr. Co. #65, Laquin, PA
(c1928) Rib Lake Lbr. Co., Rib Lake, WI
Disposition: Scrapped

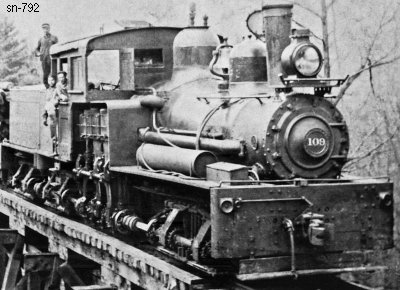

Additional Notes: Photo as #109 at Grays Run
