Lima Locomotive & Machine Co.

Photo Credit:

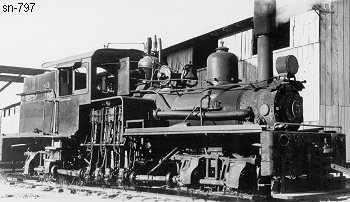

Left: by C. W. Jernstrom

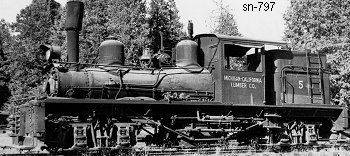

Right: John Henderson collection
Shop Number 797 - Built for: EI Dorado Lbr. Co.
{739th Lima Built Shay}
Built:
6-5-1903
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,578 Lbs.
 Factor of
Adhesion:
6.41
 Maximum
Safe Speed:
14.5
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
850 Gallons
Empty Weight:
As built
52,150
Owners:
EI Dorado Lbr. Co. #5 "EL DORADO", Camino, CA
(1911) C. D. Danaher Pine Co. #5, Camino, CA
(1915) R. E. Danaher Co. #5, Camino, CA
(1917) Michigan-California Lbr. Co. #5, Camino, CA
Disposition: (2-1953 ) Scrapped
Additional Notes:
