Lima Locomotive & Machine Co.

Photo Credit:
Allen County Historical Society Museum collection (BP 11-1903)

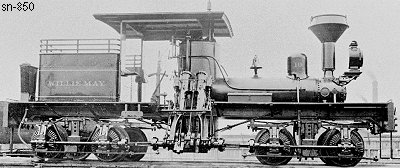

Shop Number 850 - Built for: W. G. Tuten
{792nd Lima Built Shay}
Built:
11-25-1903
Class:
A
15-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
30"
Gauge:
std.
Boiler:
[Style - Dia.]

Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
6,772 Lbs.
Factor of
Adhesion:

4.44
Maximum
Safe Speed:

11.6
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
720 Gallons
Empty Weight:
As built
25,000
Owners:
W. G. Tuten #10 WILLIE MAY, Norden, GA
J. G. L. Goop, Duncan, GA
Brewster Lbr Co., Bladen, GA
Southern Iron & Equip. Co.(D) #964, Atlanta, GA
(3-13-1914) Nastworthy Lbr Co., Smiley, GA
Southern Iron & Equip. Co.(D) #1002, Atlanta, GA
(11-29-1918) Myakka Lbr Co., Arcadia, FL
(9-8-1923) For sale (3-11-1924) reported not working
C. H. Watterson & Son, Dunnellon, FL
Disposition: Scrapped
Additional Notes:
