Lima Locomotive & Machine Co.

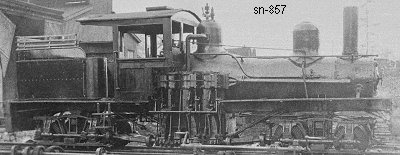

Photo Credit:
George R. Kadelak collection (c1919)
Shop Number 857 - Built for: Fosburgh Lbr. Co.
{799th Lima Built Shay}
Built:
2-5-1904
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,517 Lbs.
Factor of
Adhesion:

4.08
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
45,500
Owners:
Fosburg Lbr. Co. #2, Portsmouth, VA
Georgia RY & Power Co. #3, Atlanta, GA
Southern Iron & Equip. Co.(D) #1114, Atlanta, GA
(11-13-1919) Sutton Chemical Co., Sutton, WV
Disposition: Scrapped
Additional Notes:
