Lima Locomotive & Machine Co.
Photo Credit:

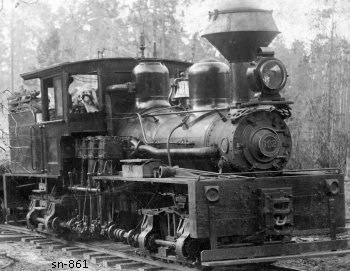

Left as Built: David Price collection

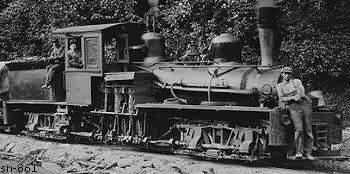

Upper as Rebuilt: Hagley Museum collection (c1918)
Shop Number 861 - Built for: Brookpark Lbr. Co.
{803rd Lima Built Shay}
Built:
5-11-1904
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,777 Lbs.
Factor of
Adhesion:

3.55
Maximum
Safe Speed:

10.1
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
850 Gallons
Empty Weight:
As built
40,000
Owners:
Brookpark Lbr. Co. #102, Enterprise, MS
Birmingham Rail & Loco. Co. (D) #1074, Birmingham, AL
(1-22-1916) Tennessee Tbr., Coal & Iron Co., Morgan & Fentress RY, Catoosa, TN
(c1918) Birmingham Rail & Loco. Co. (D) #1197, Birmingham, AL
(10-17-1918) McCorkle Lbr. Co., #102, Dante, VA
(1-24-1919) McCorkle Lbr. Co. #102, Nora, VA
(1-24-1921) McCorkle Lbr. Co. #102, Swords Creek, VA
(3-27-1926) Clinch Valley Lbr. Co. Fort Blackmore, VA
(1932) McCorkle Lbr. Co. #102, Mace Springs, VA
McCorkle Lbr. Co. #102, Stonega, VA
(6-15-1943) Coal Processing Co. #861, Dixiana, VA
Disposition: Scrapped
Additional Notes: Rebuilt by Birmingham Rail & Loco. Co., Birmingham, AL
