Lima Locomotive & Machine Co.

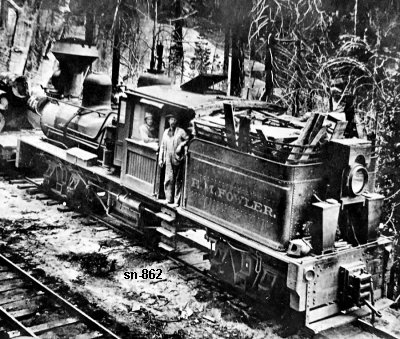

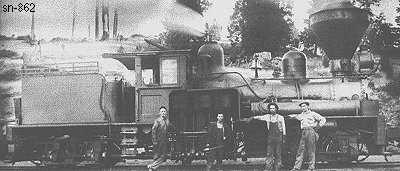

Photo Credit:
Left:: David Thhomas collection
Right: George R. Kadelak collection
Shop Number 862 - Built for: Madera Sugar Pine Co.
{804th Lima Built Shay}
Built:
2-27-1904
Class:
B
37-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.05
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
70,950
Owners:
Madera Sugar Pine Co., "E. M. FOWLER" later #3, Madera, CA
Disposition: (1937) Scrapped
Additional Notes:
