Lima Locomotive & Machine Co.

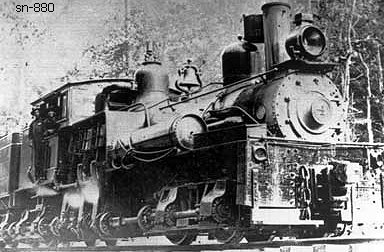

Photo Credit:
Little River Railroad Museum collection
Shop Number 880 - Built for: Little River Lbr. Co.
{822nd Lima Built Shay}
Built:
6-2-1904
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
24,166 Lbs.
Factor of
Adhesion:

5.55
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
104,000
Owners:
Little River Lbr. Co., Little River RR #4 "GEORGE", Townsend, TN
(12-1914) Boiler explosion required complete rebuild
Disposition: (12-1-1924) Scrapped
Additional Notes:
