Lima Locomotive & Machine Co.

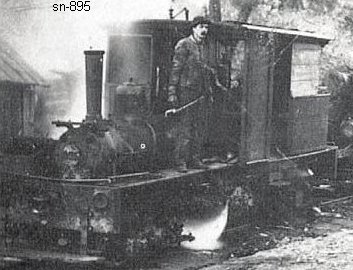

Photo Credit:
Gibson P. Vance collection
Shop Number 895 - Built for: The Douglas Land Co.
{837th Lima Built Shay}
Built:
6-10-1904
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
145
Tractive Effort:
4,449 Lbs.
Factor of
Adhesion:

4.78
Maximum
Safe Speed:

10.5
Fuel Type:
Coal
Fuel Capacity:
0.75 Tons
Water Capacity:
400 Gallons
Empty Weight:
As built
18,200
Owners:
Laurel River Lbr. Co. (The Douglas Land Co.) #895, Damascus, VA
Leased to: T. W. Thayer Co., #895 "HATTIE", Laurel Bloomery TN
(1-24-1921) Holston River Lbr. Co., Clinchburg, VA
Disposition: Scrapped
Additional Notes:
