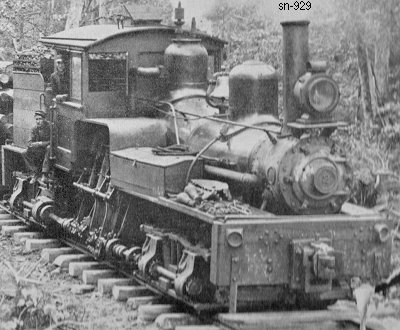

Lima Locomotive & Machine Co.

Photo Credit:
Kyle J. Neighbors collection
Shop Number 929 - Built for: Pocahontas Lbr. Co.
{871st Lima Built Shay}
Built:
9-3-1904
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
16,323 Lbs.
 Factor of
Adhesion:
3.81
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
49,480
Owners:
Pocahontas Lbr. Co. #2, Burner, WV
(1-19-1921) Keystone Mfg. Co. #2, Erwin, WV
Disposition: Scrapped
Additional Notes:
