Lima Locomotive & Machine Co.

Photo Credit:
Marc Reusser collection

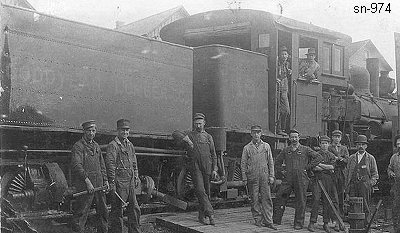

Shop Number 974 - Built for: Goodyear Lbr. Co.
{916th Lima Built Shay}
Built:
1-25-1905
Class:
C
75-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14 x 12
Gear Ratio:
2.056
Wheel Dia.:
35"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
27,896 Lbs.
 Factor of
Adhesion:
5.97
 Maximum
Safe Speed:
20.3
Fuel Type:
Coal
Fuel Capacity:
6 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
134,400
Owners:
Goodyear Lbr. Co. #19, Medix Run, PA
(1910) Potato Creek RR Co., Potato Creek RR #6, Norwich, PA
(3-10-1919) Lima Locomotive Works (B), Lima, OH rebuilt and sold *
Jerseyfield Lbr. Co. #2, Salisbury Center, NY
(1930) Emporium Forestry Co. #52, Conifer, NY
Disposition: Scrapped
Additional Notes: * Owned by Dealer
