Willamette Iron and Steel Works
Photo Credit:
Left: Steve Hauff & Jim Gretz collection
Right: Doug Richter collection
Construction Number 16 - Built for: Long-Bell Lbr. Co.
Data is "AS Built" by Willamette Iron and Steel Works
Class:
Tons-Trucks
70-3
Std. (56½")
 Cylinders:
#-Dia. - Stk.
3 - 12" x 15"
Boiler:
[Style - Dia.]
EWT - 50.5"
Super Heated
 Boiler Pressure:
In Lbs. (PSI)
200 lbs
Driver Dia.:
36"
Gear Ratio:
2.37
 Tractive Effort:
31,968 lbs.
 Factor of
Adhesion:
5.78
Maximum
Safe Speed:
18.1
 Empty Weight:
151,900 lbs.
 Working Weight:
184,761 lbs.
 Full Weight:
207,266 lbs.
Fuel / Capacity:
Oil / 1,500 Gals
Water Capacity:
4,000 Gals
 Cab:
Steel,
All Weather
 Shipped:
8-3-1924
Owners:
(8-3-1924) Long-Bell Lbr. Co. # 701, Longview WA
(1947) Rayonier Inc. #4, Sekiu, WA
(1960) Displayed at Sekiu yards, Sekiu, WA
(1960) Donated to City of Port Angeles, WA

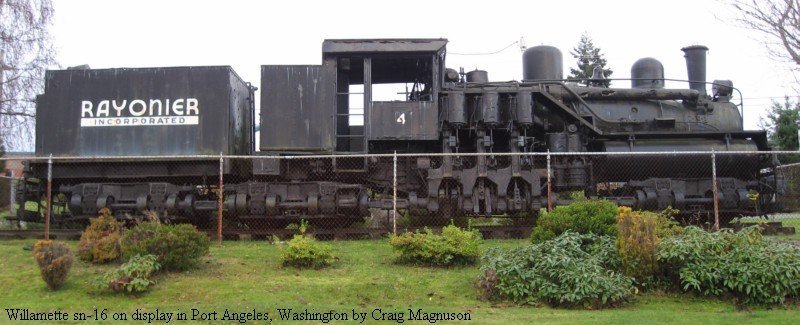

Disposition: (1960) Displayed as #4 in Port Angeles, WA
Additional Notes:
